Chapter 1 Product Overview
1.1 Scope of application
AI - 733 is a multifunctional intelligent motherboard, commonly used in ARM PC, large-screen splicing , animation and games , conference tablets , edge computing , industrial computers , TV player boxes , cloud servers, smart NVR and other fields.
1.2 Product Overview
AI - 733 uses Rockchip RK 3588, a new generation flagship octa-core 64-bit processor. The chip comes with a 6TOPS computing power NPU, and is equipped with Android1 2.0/Ubuntu20.04/Debian11.0 system ( the kernel is Linux 5.10 ) . The GPU uses Mali-G610 MC4 , which has outstanding performance and high cost performance. It supports 8K video encoding and decoding , 8K display output , built-in multiple display interfaces, and supports multi-screen display ; rich high-speed interfaces (PCIe, TYPE-C, SATA, Gigabit Ethernet), which is easy to expand .
1.3 Features
- High definition. Supports up to 8K decoding and various LVDS signal LCD displays, EDP screens.
- multiple upgrade methods such as remote, U disk, TF card, USB cable connected to computer, etc.
- U disk, TF card configuration screen parameters, plug and play, perfect support for all sizes, all resolution displays.
- Perfectly supports mainstream industry release software and industry application software, ready to use.
- Perfectly supports a variety of mainstream touch screens such as infrared, optical, capacitive, resistive, etc., supports HID configuration of driver-free touch screens, and no debugging is required.
- Perfectly supports the industry's mainstream USB/serial port devices, printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, etc., and provides demo test programs.
- Highly integrated. With 9 USB ports, 9 serial ports, 4 IO ports, WIFI/RJ45/4G /5G and other networking options.
- Built-in PCI-E module socket, supports various PCI-E modules such as YUGE and Quectel to access the Internet.

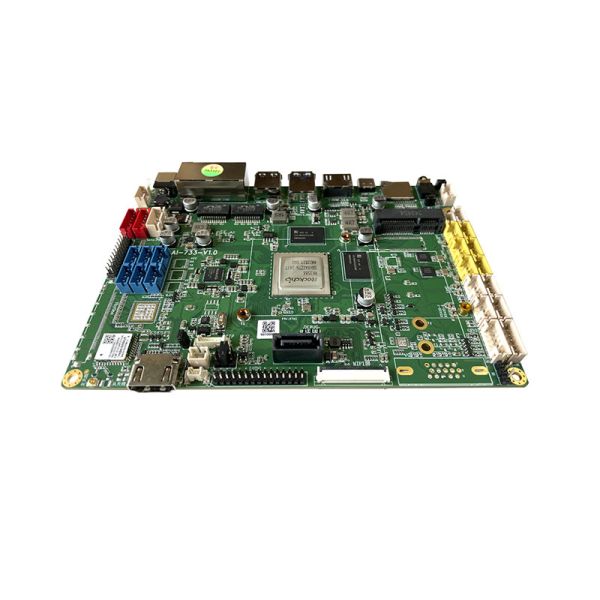

1.4 Appearance diagram and interface description
The corresponding interfaces of the numbers in the picture are:
| serial number | Pin Definition |
| 1 | DC-12V power supply |
| 2 | 1000M LAN*2 |
| 3 | USB_HOST |
| 4 | USB3.0_HOST |
| 5 | HDMI TX (HDMI output) |
| 6 | USB 0 _OTG ( TYPE-C) |
| 7 | TF Card |
| 8 | Audio_OUT |
| 9 | Uboot button (Uboot can be triggered by a long pin after Audio_out) |
| 10 | Power button + reset button |
| 11 | Speaker interface |
| 12 | MIC interface |
| 13 | 4G module interface |
| 14 | M.2 interface optional (5G module, hard disk, etc.) |
| 15 | USB_HOST (6) |
| 16 | CAN1 |
| 17 | CAN2 is optional and multiplexed with serial port 5. It has no function by default. |
| 18 | Serial port 6 (RS485) |
| 19 | Serial port 1 (RS485) |
| 20 | GPIO |
| 21 | LED+IR |
| 22 | IR interface |
| 23 | VGA interface optional |
| 24 | MIPI screen interface |
| 25 | DEBUG serial port 2 |
| 26 | SATA hard disk interface |
| 27 | Dual channel LVDS screen interface |
| 28 | LVDS-VCC (screen power supply jumps) |
| 29 | CTP touch screen interface (same as No. 48, choose one) |
| 30 | FAN Fan Connector |
| 31 | RTC-BAT (RTC battery interface) |
| 32 | HDMI IN |
| 33 | WiFi dual antenna interface |
| 34 | Vbyone interface option |
| 35 | Serial port 7 (default TTL serial port, optional RS232) |
| 36 | Serial port 0 (default TTL serial port, optional RS232) |
| 37 | Serial port 3 (default TTL serial port, optional RS232) |
| 38 | Serial port 8 (default TTL serial port, optional RS232) |
| 39 | Serial port 4 (default TTL serial port, optional RS232) |
| 40 | Serial port 5 (default TTL serial port, optional RS232) |
| 41 | EDP screen interface |
| 42 | SATA_PWR (SATA hard disk power supply) |
| 43 | Secondary screen backlight interface |
| 44 | Main screen backlight interface |
| 45 | Power input interface |
| 46 | SIM-CARD |
| 47 | MIPI-CAM ( MIPI Camera Interface ) |
| 48 | CTP touch screen interface PFC seat (same as No. 29, choose one) |
